HIGHT FREQUENCY INDUCTION WELDED SQUARE AND RECTANGULAR TUBES

  • Squre and Rectangular tubes are produced as "cold-formed" from hot-rolled and semi-bright (pickled hot-rolled and cold-rolled) steel
  • END USES
    Civil engineering, construction, machinery , agricultural equipment, conveyors, cranes, marine containers.
  • SIZE

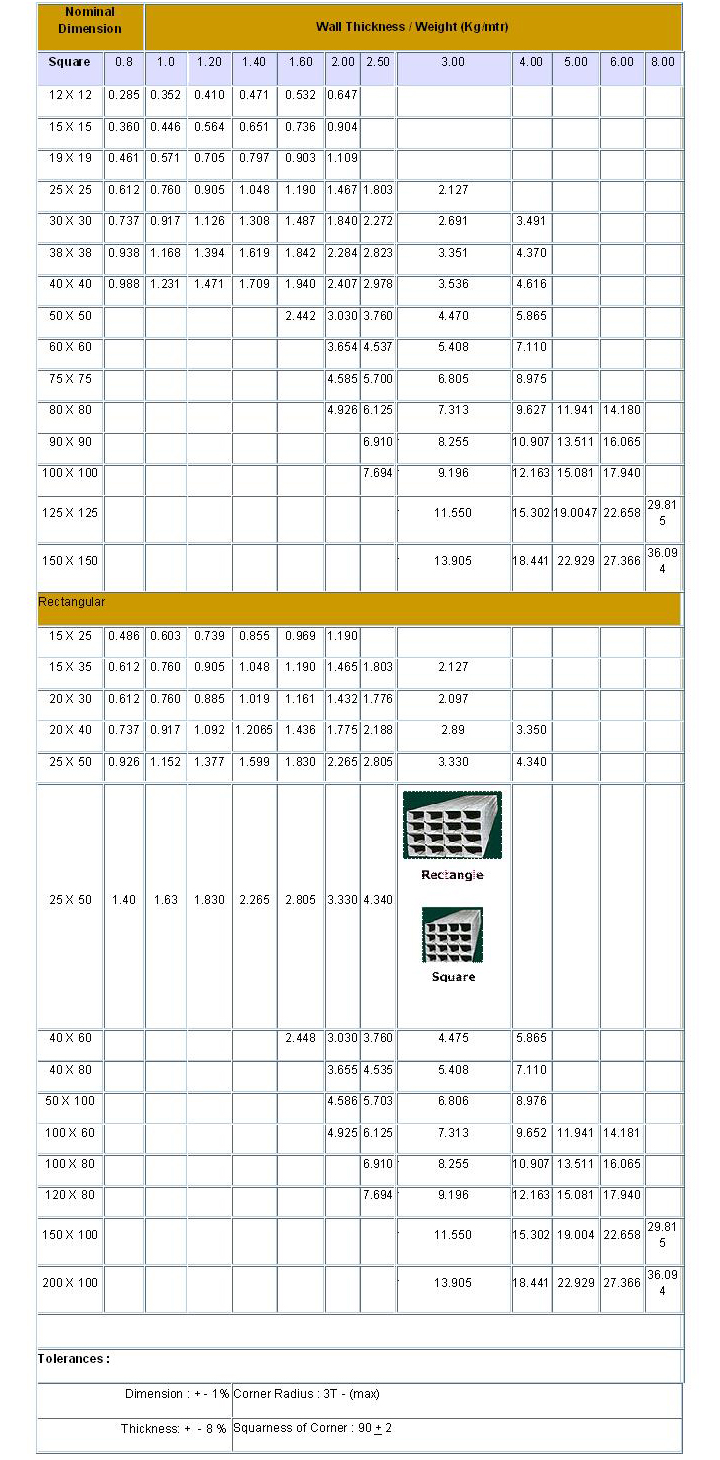

    » Outside diameter : 12mm x 12 mm to 150mm x 150 mm in squares. 15mm x 25 mm to 200mm x 100 mm in rectangular.
    » Wall thickness : From 0.8 mm to 8.0 mm
    » Length : Up to 12 mtrs
  • PIPE ENDS
    plain
  • SURFACE FINISH
    Black (Self - colored and semi - bright ), Outside mill protective coating and Pre Galvanised.
  • PRODUCTION STANDARDS
    Conforming to IS- 4923 & IS-7138 equivalent international specofocation ASTM A500 , BS 6323.
  • PACKING
    Bare bundles unless special packing (jute , hessian cloth , etc) is requested .
  • INSPECTION
    Mill's certificate or inspection by an independent organization authorized by the customer.
  • TESTS PERFORMED
    As required by the standards.
